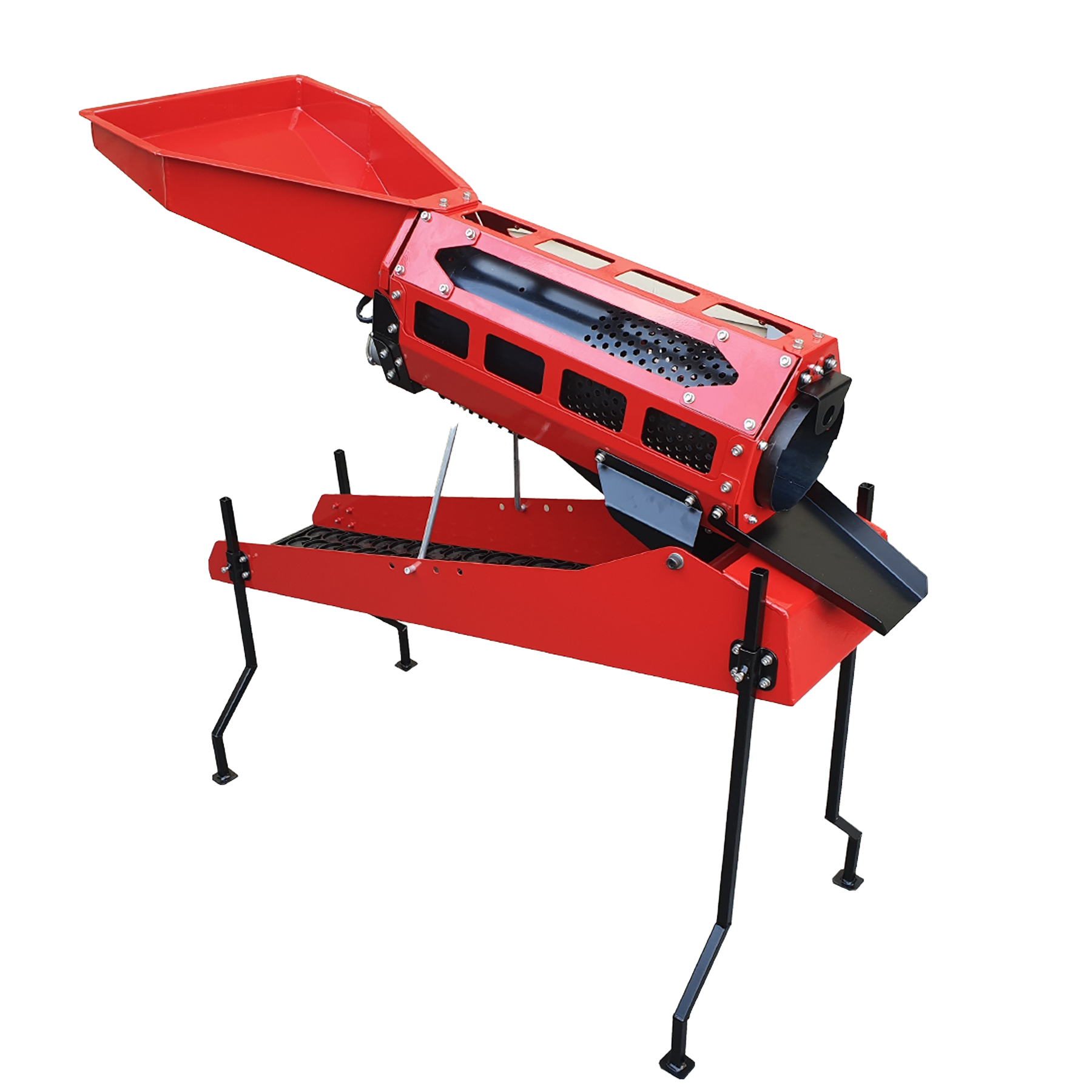

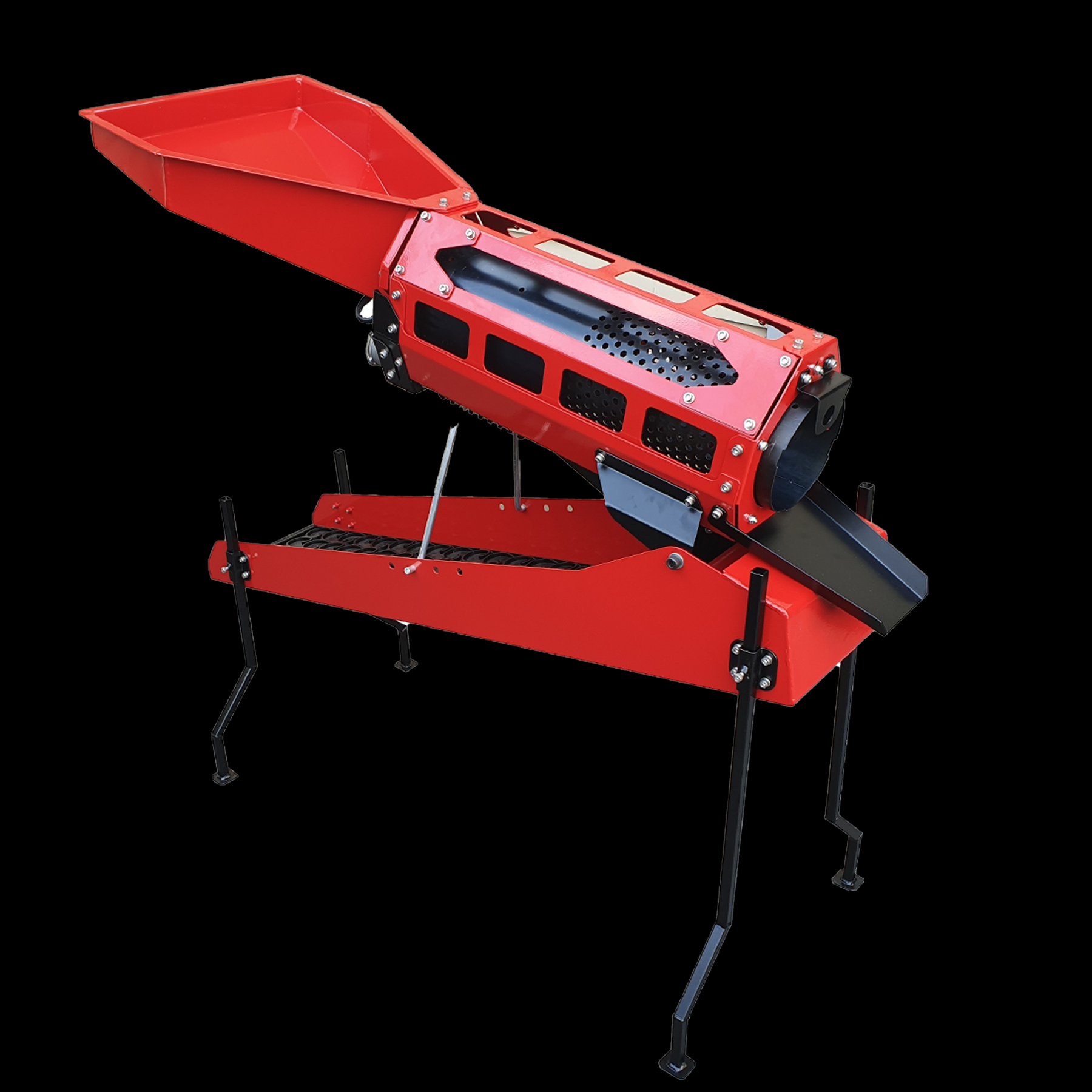

Redback 6" Trommel

CNC laser cut and folded aluminium construction this trommel is built to the highest standard.

The barrel is 150mm diameter x 600mm long and is made from 1.6mm 350 grade steel with black zinc plate finish. Inside the barrel is 3 removable breaker bars to help tumble the material and break up clay.

This trommel incorporates an internal spray bar and comes complete with a 12v 4700gph pump and associated fittings.

A 2 speed, 12v high torque electric motor drives the trommel with 10mm thick steel gears. (Some competitors just use a spring to mount the motor driven by plastic gears). There is guarding all around the gear set to prevent rocks getting in.

Underneath the trommel sits our own 10" ROEmat.

Both the trommel and sluice angles are fully adjustable.

Weighing just 24kg this is a large lightweight trommel that is easy to move around. This trommel stands at 1 metre tall and is 1.5 metres long.

As this is a large item we keep it out of stock on the website as freight can change quite a bit depending where you are. Please contact us for a freight quote and to check stock availability.
